Product introduction
Intelligent servo electric hoist is a special lifting product developed by Nucleon with the intelligent control as the core, and adopts servo motor-drive system and is developed in combination with precision planetary gear reducer. With the features
Independent design
Modular design
Intelligent
Compact design
environment protection
Safety design
Product Details:

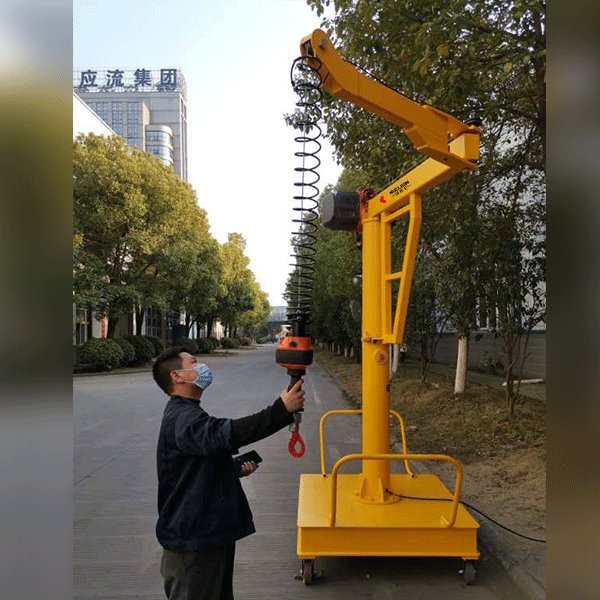

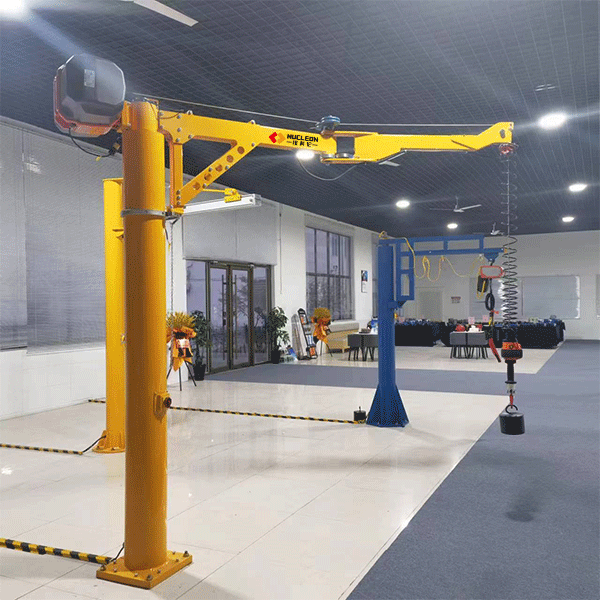

The intelligent servo electric hoist is an ergonomically designed material handling equipment, which consists of servo driver, servo motor, planetary reducer, sensor and related structural parts and is controlled by microprocessor. It has the features of easy operation, high precision, intelligence, controllable speed, safety and reliability, fast response speed, high working level of M5 and above.
The picking device of the electric hoist is equipped with slings, clamps and suction cups, and the control is equipped with coaxial pressure handle, coaxial sliding handle, full touch handle, continuous variable transmission (CVT) handle, wireless remote controller. According to different operating conditions, various functions can be set through the expansion port to realize customized services.
The intelligent servo electric hoist can be operated flexibly and conveniently to reach higher efficiency and the balance mode can be switched easily without any adjustment.
Product Features:
(1)Easy speed control
It can move at the speed selected by the operator, which is suitable for operating conditions of load cycle transportation.
(2)Balance mode
Multi-purpose balance mode is equipped. The load can be controlled to move up and down within the effective route and achieve accurate positioning by holding the load with both hands and exerting slight force.
(3) Anti-bounce Technology
This technology can ensure that the equipment will not shift or rebound when the load weight changes suddenly, thus reducing the potential serious injury accidents.
(4) Power-off protection technology
When power failure occurs, the load is braked and locked in place.
(5) Anti-misoperation function
The control handle has a built-in photoelectric sensor. The sensor will limit the operation of the equipment unless the operation is conducted by operator.
(6)Human-machine engineer configuration
The equipment has user-oriented programmable interface application technology. User can set the high/low speed conversion position, upper/ lower soft limit, speed percentage and the height that best suits the operation of workers according to the actual use condition.
Operating mode of the intelligent servo electric hoist includes manual mode, suspending mode and external handle.
a.Manual mode: Equipment will be in the manual mode only when the user hold the handle or press the button of the external handle. The handle will sense the force direction and magnitude of the operator's hand and make corresponding speed and direction adjustments. The force magnitude determines the speed of the equipment.
b.Suspending mode: When a user switches to “suspending mode”through the button, the up and down movement of the load can be realized by just holding the hold.
c.The external handle is an optional part and is generally not assembled together with the coaxial handle. There are two buttons on the handle, which respectively control the up and down movement of the equipment. Different from the buttons of traditional equipment, this button can control the speed of the equipment according to the pressed distance to realize continuous variable transmission (CVT).
d.Standard configuration of the hoist has soft limit function, which easily achieve five functions of setting upper limit, lower limit, downward deceleration, upward deceleration and upward speed recovery. Limit point can be quickly set and cleanup, which can help to realize the auxiliary control of safety production.
Performance Parameters:
Lifting capacity: 80kg～600kg
Maximum lifting speed (manual mode): 7.5m/min～40m/min (no load)
6.8m/min～30m/min (full load)
Maximum lifting speed (suspending mode): 6.75m/min～36m/min (no load)
6.08m/min～27m/min(full load)
Lifting height: 1.75m～3.5m
Rated power: 0.75kW～2kW
Noise: ≤60dB
Ensure that the crane moves slowly and accurately as it approaches its destination. This function can be applied to hoisting mechanism, trolley and crab. Inching movement can be set as required.
Dead slow function can ensure the stability of the control system and slow, accurate movement when the crane is moving and loading. This function can be applied to hoisting mechanism, trolley and crab.
"Zero speed hover" function automatically starts to prevent slip hook when the control system detects the slip hook trend (the motor does not rotate when the brake is opened).
Our cranes are all equipped with functions of upper pre-limit, upper limit, top impact-proof?limit impact-proof of the crane, which meets various needs of customers for products.
Crane can automatically limit the sway of the loader in the process of handling, realizing faster handling and more accurate positioning, and to be stable during the handling process.
Cranes are equipped with hazardous area restriction function, which can reduce the dangerous situation during loader movement, and prevent the damage of the loader, crane and surrounding area facilities.
Our cranes can add sub-low speed and sub-high speed function regulation except for low speed and high speed, which is practical and efficient.
The crane can monitor and control position difference of multiple hooks to make the hooks run synchronously at the same speed, ensuring the efficiency and quality of the crane.
When multiple cranes lift a loader at the same time, the position difference of multiple cranes can be monitored and controlled to make the crane operating mechanism run synchronously at the same speed.
A wireless module can be added to the crane to connect to the Crane Industrial Internet Platform, realizing the full life cycle management of the crane.
